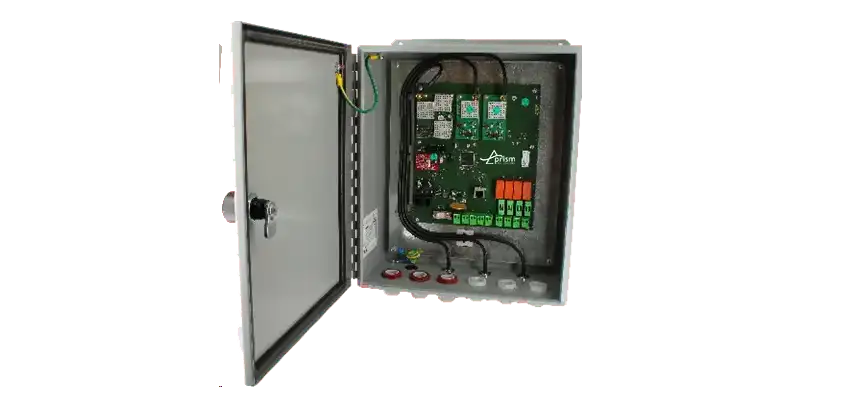

Siren Control

Electrical

• DC Input Voltage Range: 9 – 48V Nominal
• 4 Outputs Rugged Contact Relays:
  • AC: 16A @ 250VAC
  • DC: 8A @ 24VDC
• 4 Inputs Dry Contacts:
  • External Button for Siren Activation
  • Power Supply Alarm
  • User Input Source 1
  • User Input Source 2
• Board Connectors: RS485, Ethernet RJ45, USB-C, Antennas
• Operating Temperature: -22 to +158 Fahrenheit

Radio Protocols

P25 Module: Conventional / Trunked Phase I & II

• Frequency Range: VHF / UHF / 763 – 776 MHz / 851 – 870 MHz
• Sensitivity: -119dBm Typical
• Rejection: 70dB
• Selectivity: >60dB
• Spurious: >70dB
• Antenna Impedance: 50 Ohms

VHF / UHF Module: 2Tone / DTMF / POCSAG

• Frequency Range: 136 – 174 MHz / 434 – 470 MHz
• Sensitivity: -119dBm Typical
• Channel Spacing: 6.25kHz / 12.5kHz / 25kHz
• Baud Rate: 512, 1200 or 2400
• Antenna Impedance: 50 Ohms

3G / 4G LTE Module

• Category: Cat-1
• Frequency Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
• Data Speed: Peak Download Rate 10Mbps
• Peak Upload Rate 5Mbps
• Planned Carrier: AT&T, Sprint, T-Mobile, Verizon
• Regulatory: FCC, GCF, IC, PTCRB

Mild Steel Box

• Dimensions: H 14 in × W 12 in × D 6 in
• Weight: Complete Box Wired 19 lbs; Board Only 2 lbs
• Door: Front Face, 120° Opening, Padlockable Quarter Turn Latch
• Standards:
  • UL 864
  • UL 508A Type 3R, 4, 12 and 13
  • CSA Type 3R, 4, 12 and 13
  • Complies with NEMA Type 3R, 4, 12 and 13
  • IEC 60529, IP66
• Cable gland with N connectors on the bottom of the cabinet for antennas
